Commercial Demand Recirculation Control | 3 Temp Sensors | MicroSD Card | DC000A
$1,097.00
- The Commercial Demand Recirculation Controller is designed for central hot water systems with an existing Recirculation Pump.
- Controls the existing compatible Recirculation Pump and modulates storage tank temperature based on hot water demand.
- Three 8-foot surface mounted temperature sensors allow simple, non-invasive installation.

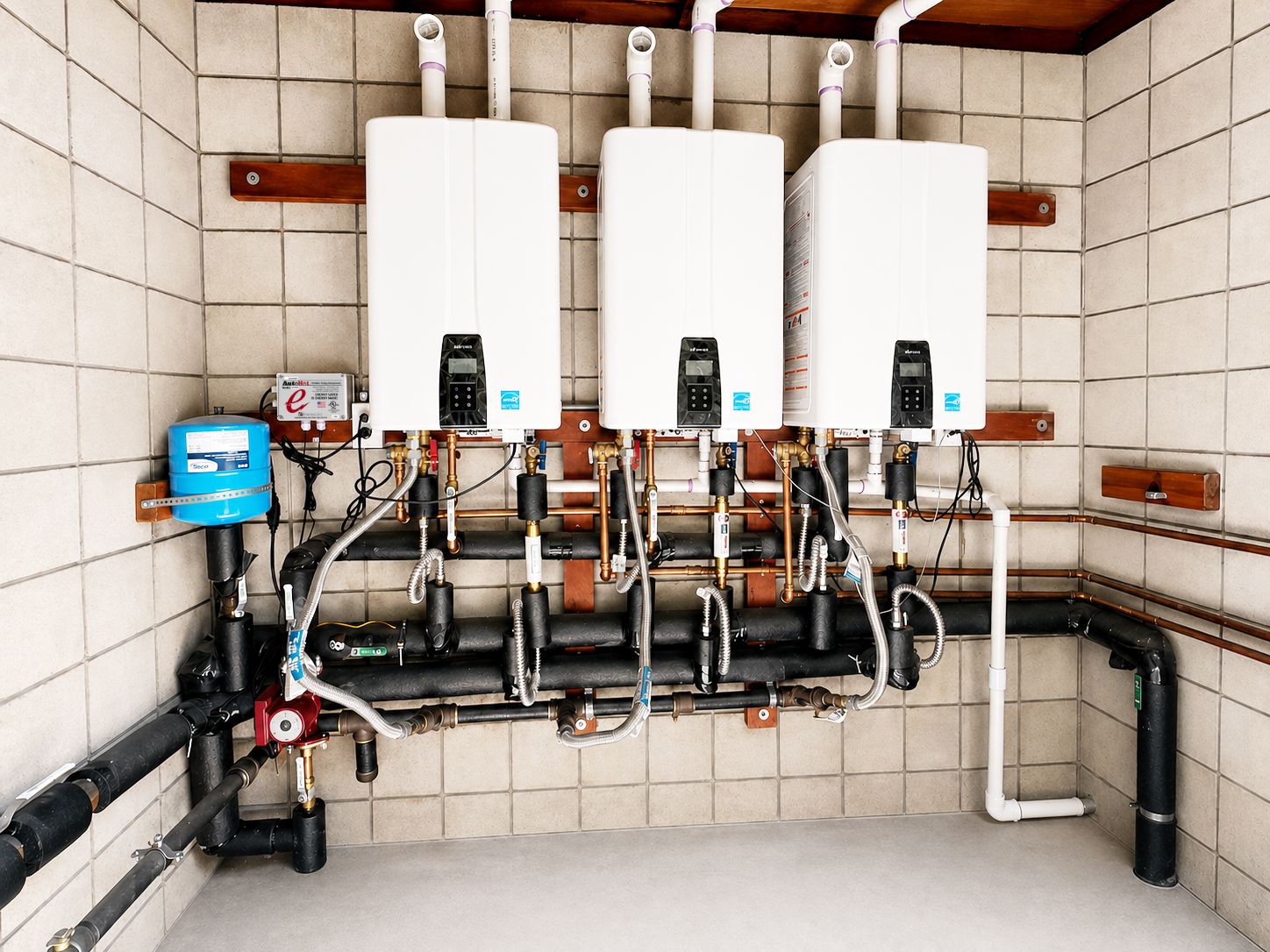

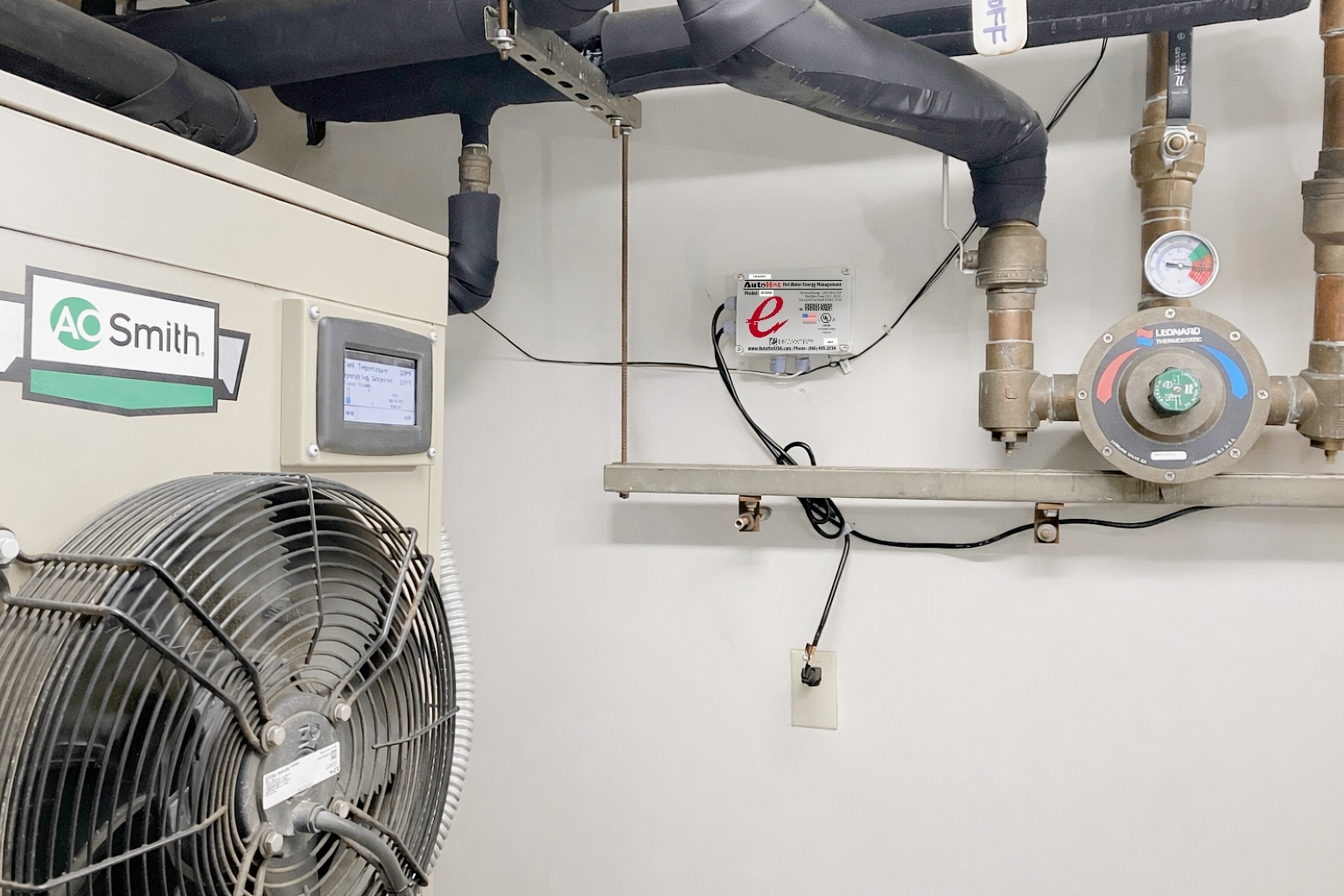

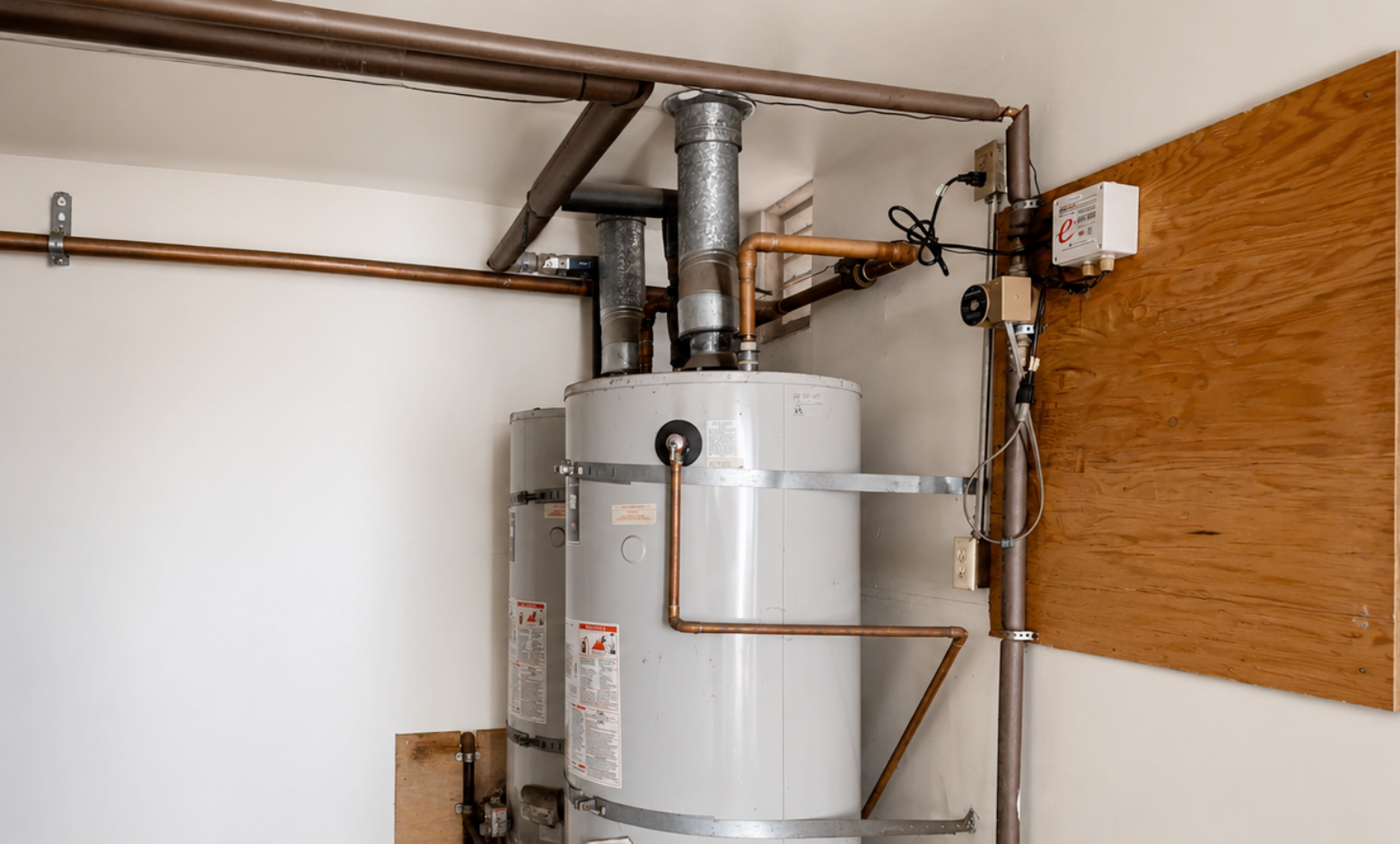

- Compatible with tank, tankless, and heat pump water-heating systems.
- Helps Eliminate The Wait for Hot Water and can reduce total hot water energy use by up to 30% (per month).
Engineers and Builders:
The Commercial Demand Recirculation Control meets the latest building energy code requirements for demand controlled recirculation, including:
- NGBS Green Certification. Builders can receive NGBS points by implementing the commercial Demand Recirculation Controller in any multifamily, hotel or commercial building.
- International Energy Conservation Code (IECC). and California Title 24 compliance.
Recommended Installation
- Most suitable for central hot water systems such as commercial, multifamily, hotels, motels, student dorms, etc.
- For use on a recirculation loop using a dedicated return line.
- Works with any tank, tankless or heat pump water heater.
Features
- Demand Recirculation Control: Optimizes recirculation pump run-time for energy savings and efficient hot water distribution.
- Temperature Modulation: Resets water heater temperature based on hot water demand.
- Data Collection: Continuously collects system performance data to show you how well your system is running.
- Remote Monitoring and Control: Access system performance data from any device, anywhere. Control your water heater temperature and pumps remotely.
- Auto Fault Detection and Alert Notifications: Receive hot water system fault alert emails when the system is not running properly or efficiently through the Remote Monitoring feature.
Value Proposition
- Running faucets and showers waiting to get hot water can easily waste as much as 30 gallons of water daily.
- Reducing recirculation run-time in a commercial or multifamily building may increase overall water heating efficiency by up to 30 percent or more per month.
- Dramatically reduce water recirculation run-time while still providing reliable hot water service.
- Resets water heater temperature based on buildings hot water demand.
- Receive hot water system alert emails when the system is not running properly or efficiently with our Remote Monitoring software.
Optimized System Performance and Data Collection
Pumps that run 24/7 not only cause your water heater to fire up more frequently than needed, but also can create pipe erosion, leading to pipe pitting or pinhole leaks.
Demand Recirculation Controller Benefits
- Reduces total hot water energy use by up to 30 percent.
- Reduces occurrence of pipe pitting and pinhole leaks.
- Increases the useful life of the hot water system.
Features and Usage
- Can be used on new construction or as an energy saving retrofit.
- Ideal buildings include hotels, dorms, apartments and other multi-unit commercial buildings or locations where hot water is critical (restaurants, gyms, etc).
- Can be used with a building’s existing, functional recirculation pump.
- Works with any gas or electric domestic hot water heating system.
- Proudly designed and manufactured by AutoHot in the USA.

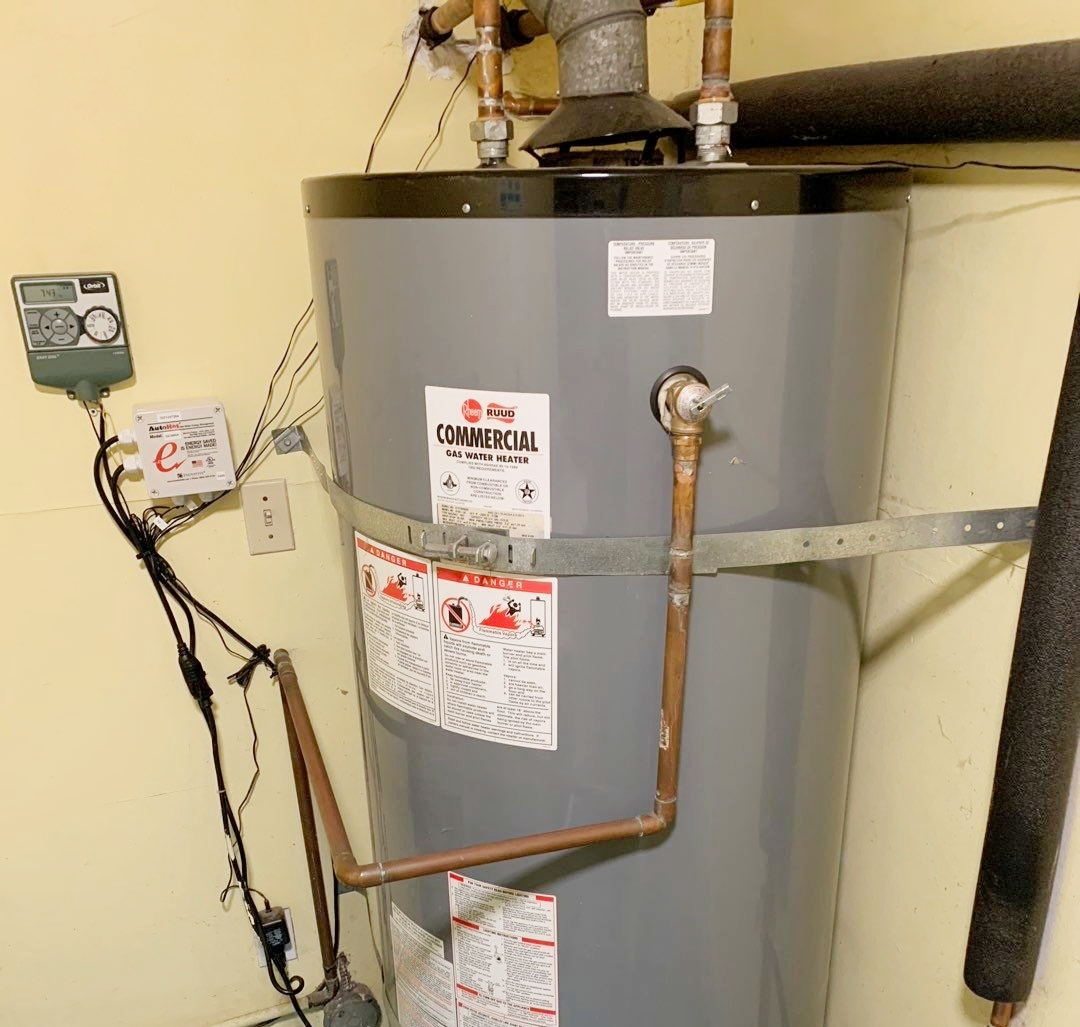

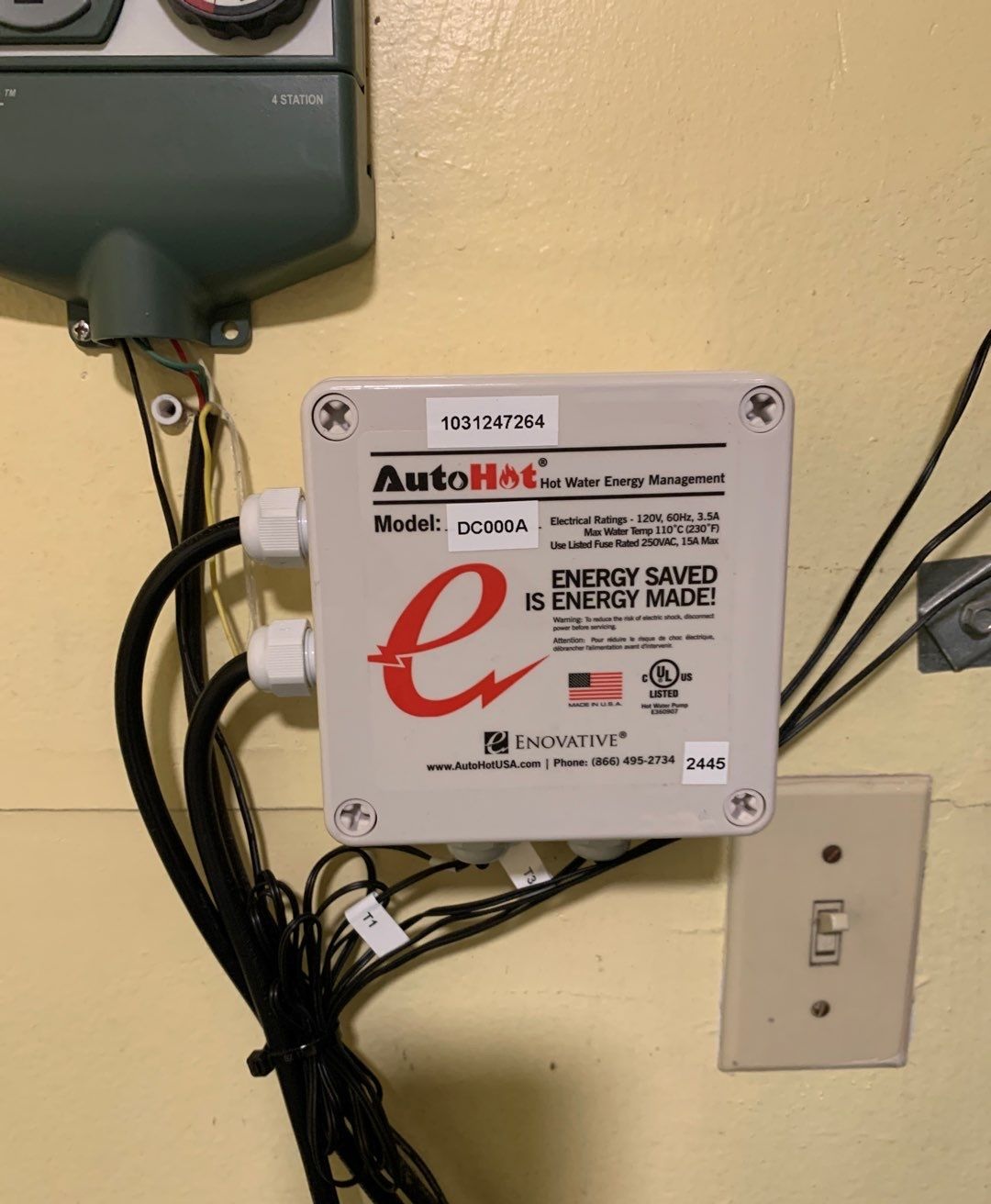

Installation Guidelines
- All contact sensors are surface mounted and non-invasive. Each temperature sensor is 8 feet in length with the ability to make them longer.
- Easy installation.
- Controller works with any conventional, constant speed circulator pump that does not already have controls integrated.

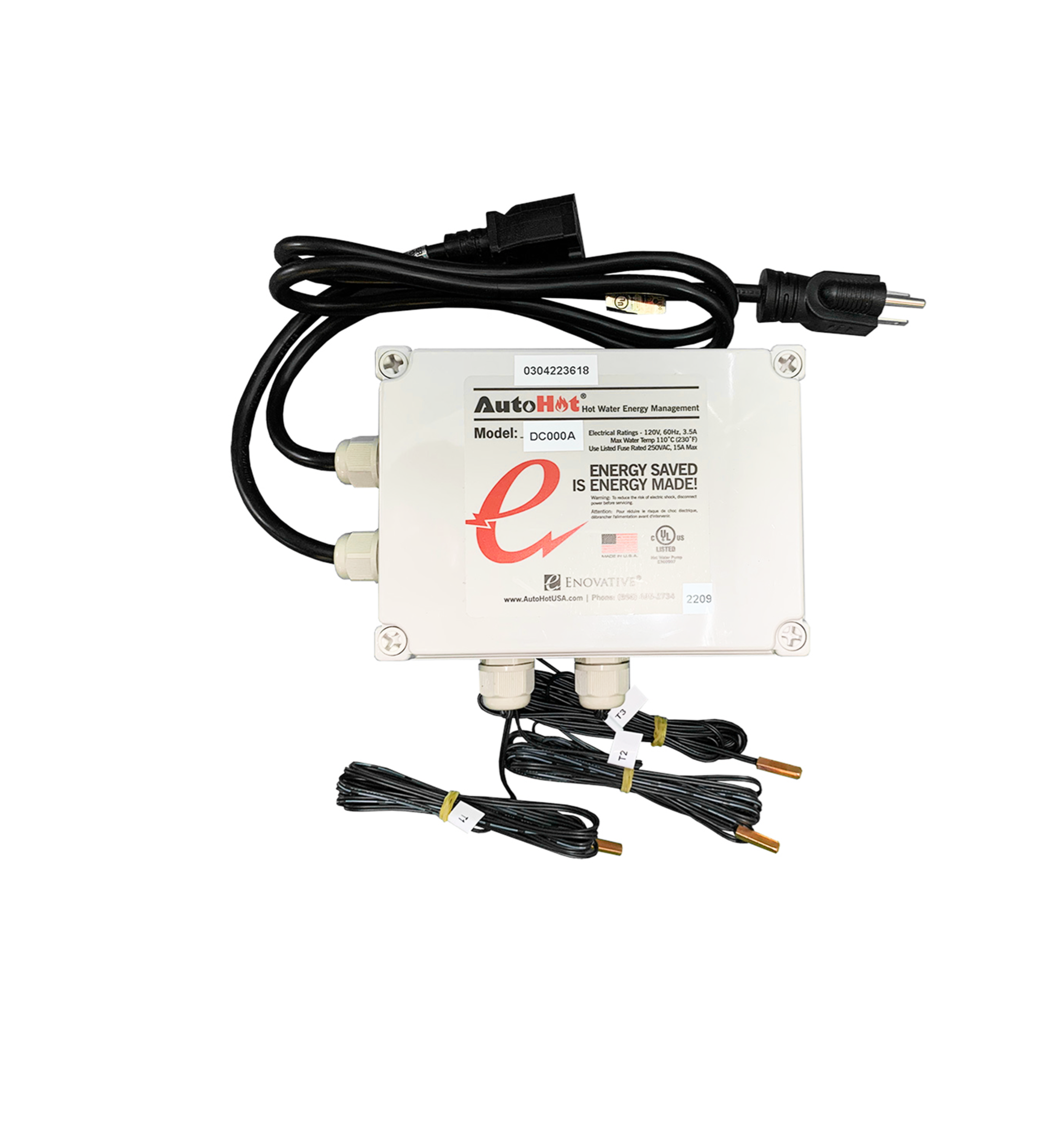

Commercial AutoHot Includes
- Controller.
- Three 8 foot long temperature sensors.
- Micro SDCard.
- 4 mainboard Current Transducers (CT) switch inputs to track equipment runtime such as gas valves, pumps.
- 3 additional temperature sensor inputs.
- Record data to onboard SD card such as up to 3 temperature points (min, max, avg), 4 CT switches for equipment runtime (totalized and per period), and sensor activity.
Onboard LCD Display provides the ability to make settings adjustments and to connect to available WiFi networks.
Recommended Accessories
Current Transducer (CT) Loggers
ERK-001 External Relay Kit
For distributor pricing please Contact Us direct.
| Weight | 3 lbs |
|---|---|
| Dimensions | 9 × 8 × 6 in |
