Residential Demand Recirculation System | Under Sink Crossover | DR055A-USC
New Product: Not available for ordering, soon to be released. If you are interested in this product and would like more information, please contact us.
- The AutoHot Residential Demand Recirculation System Under Sink Crossover kit with the included 55 Series Recirculation Pump will help you eliminate the wait for hot water within seconds without the need for a power outlet under the sink.
- Digital LED display on the front of the Temperature Sensor.
- The Under Sink Crossover has integrated smart system dynamics that prevents hot water from crossing into the cold water line.
- Compatible with any tank, tankless or heat pump water heater.
- Includes two Wireless Push Button Activators.
- Operates on-demand, minimizing Recirculation Pump run time to 15 minutes or less per day. Save on energy costs in addition to water waste.
- Meets the most current energy code requirements for on demand recirculation including IECC and California Title 24.
- The included Wireless Push Button Activators are compatible with additional Gen2 and Gen3 activators.

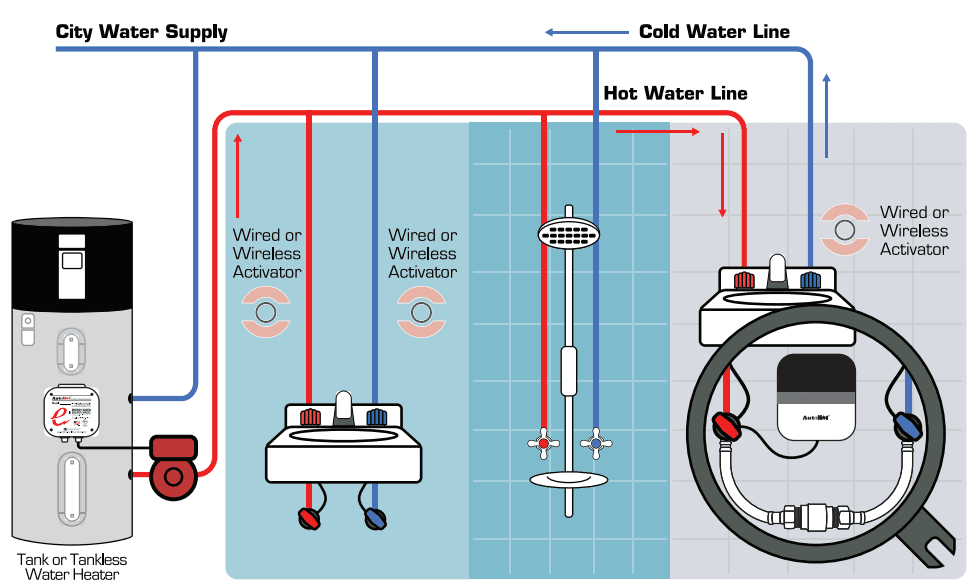

How The Under Sink Crossover | DR055A-USC Works:
- Recirculation Pump turns on by activating the Wireless Push Button Activator.

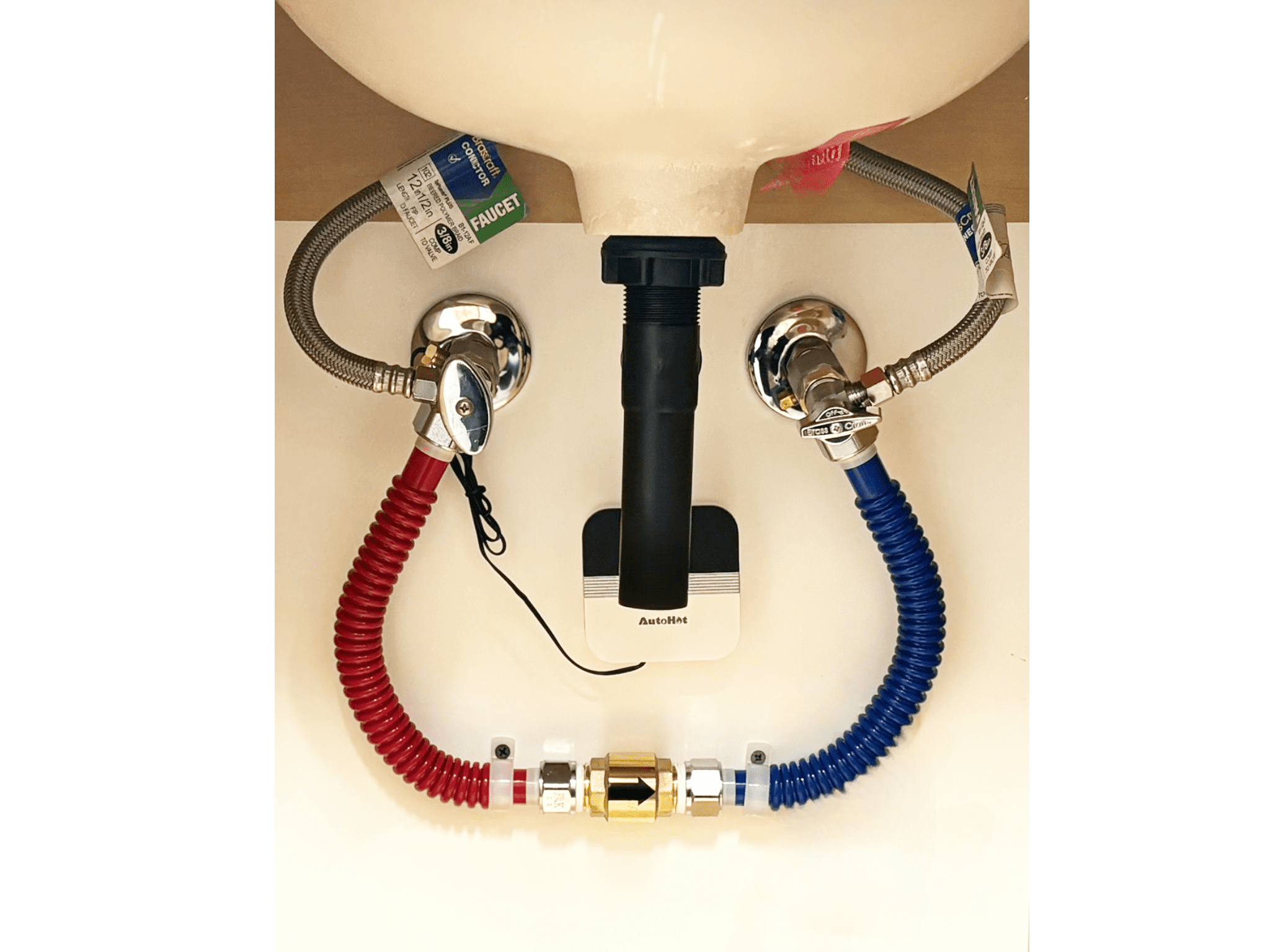

- Pump sends hot water through the plumbing line. The Under Sink Crossover allows the cold water from the hot line into the cold line.
- The Temperature Sensor sends a wireless signal to turn the pump off when it sees a 6 degree rise in temperature, ensuring no hot water crosses into the cold line while getting hot water to the end within seconds.
Recommended Installation:
- Turns the 55 Series Recirculation Pump into on-demand mode.
- The AutoHot Under Sink Crossover System is for use on any standard plumbing system that does not have a return line.
- The 55 Series Recirculation Pump turns on by activating the included Wireless Push Button Activators.
- The 55 Series Pump is recommended for plumbing runs of up to about 100 feet from the water heater.
- Not sure what you need? Please Contact Us for sizing recommendations.
Features and Usage:
- For use on system(s) without a dedicated recirculation loop.
- Works with any tank, tankless or heat pump water heaters.
- Proudly designed and manufactured by AutoHot.
- All Gen3 AutoHot Controls have a built-in Receiver and Transmitter.
The Advantages & Benefits of Using AutoHot:
- Operates on demand – The most efficient method of hot water recirculation system available today. Recirculation Pump runtime typically will not exceed 15 minutes per day.
- Easy installation – Can be used on any standard plumbing system with any type of tank, tankless, or heat pump water heater.
- Eliminates the wait for hot water providing comfort and convenience.
- Save on average 3,000 to 11,000 gallons of water annually. Running faucets and showers waiting to get hot water can easily waste as much as 30 gallons of water daily.
- AutoHot Demand Recirculation will maintain the performance and efficiency of any heat pump water heater.
Additional Accessories:
Wireless | LED Lighted Indicator Switch

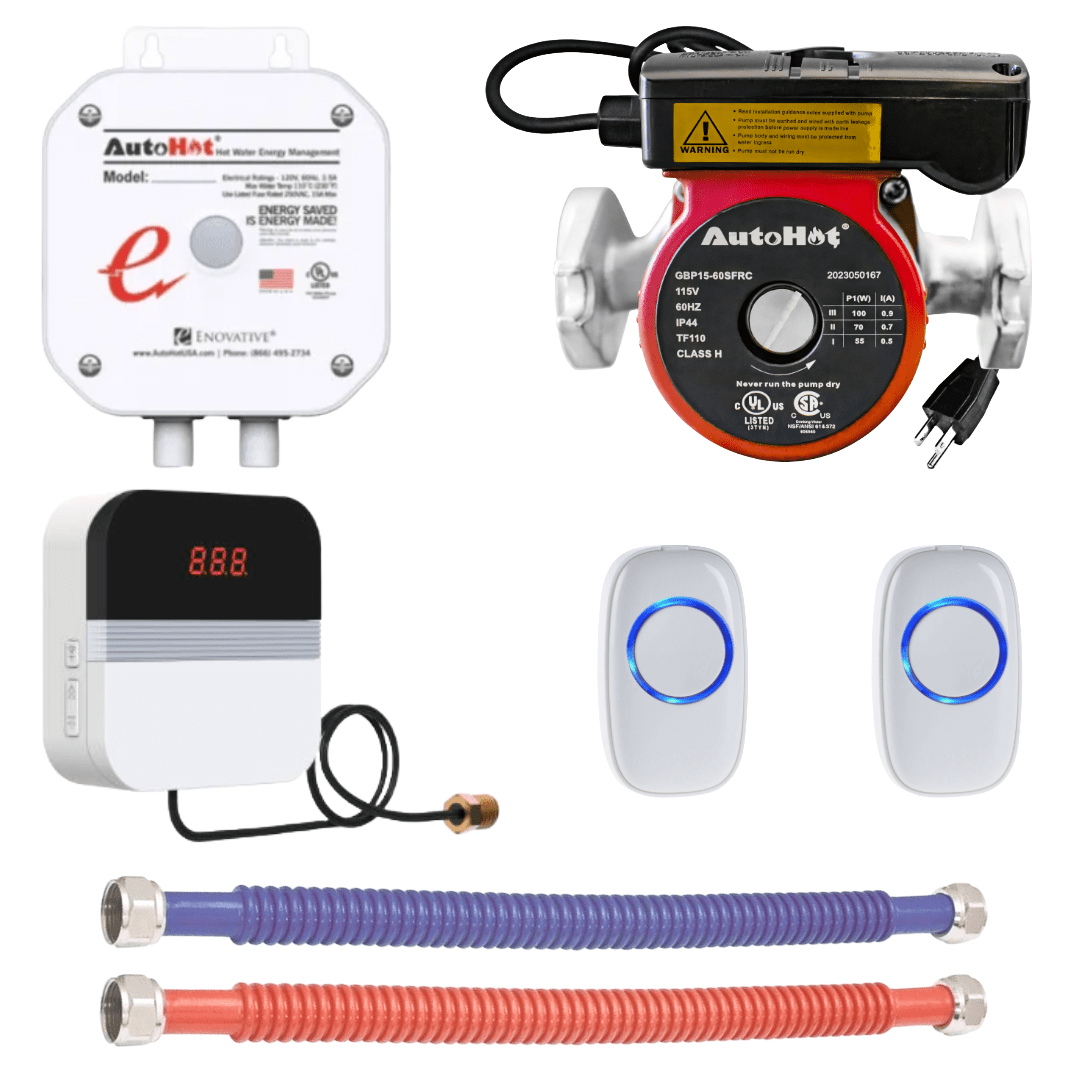

Includes:
(2) ½ Brass Tee Compression Fittings
(2) 10″ Flex Lines Color Coded Stainless Steel

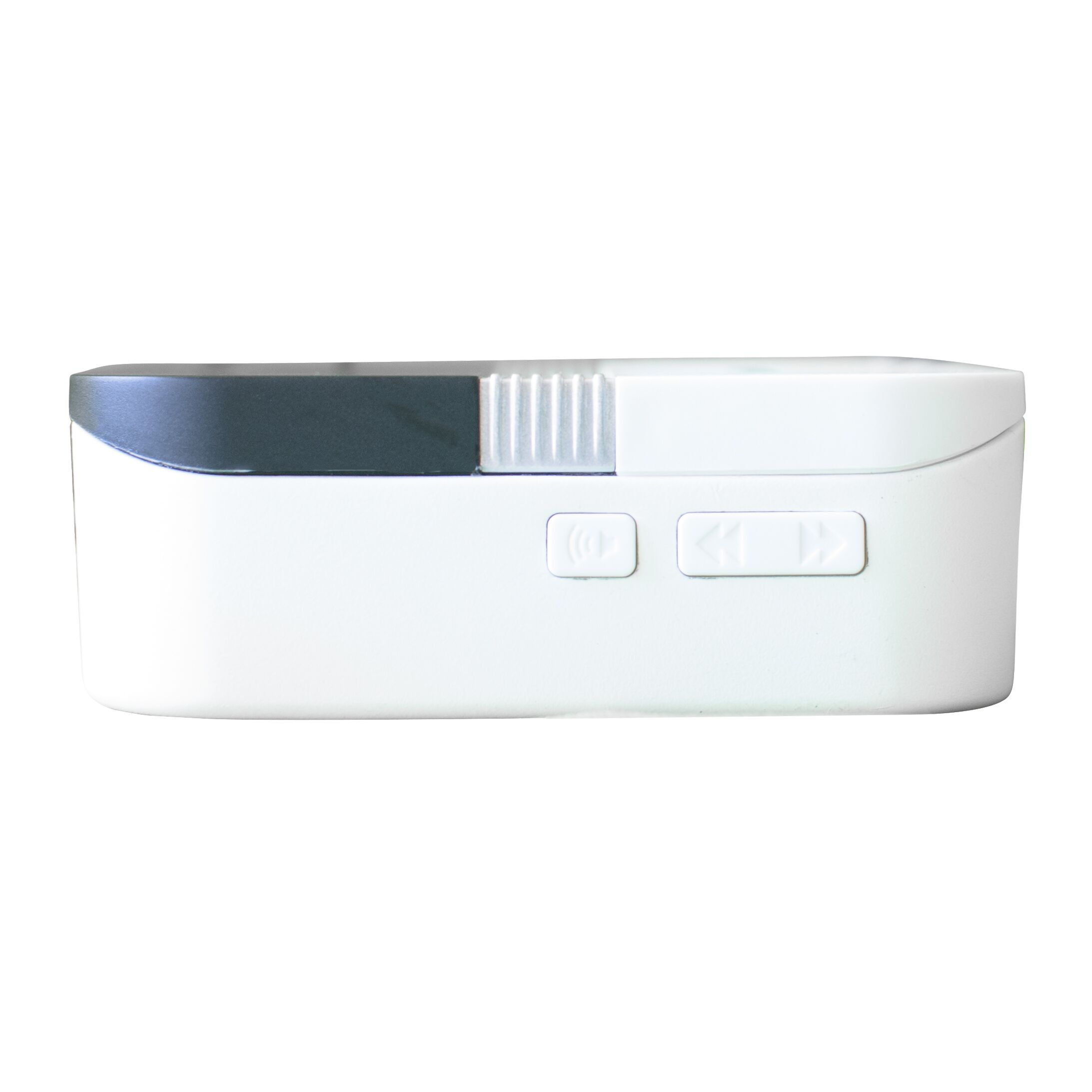

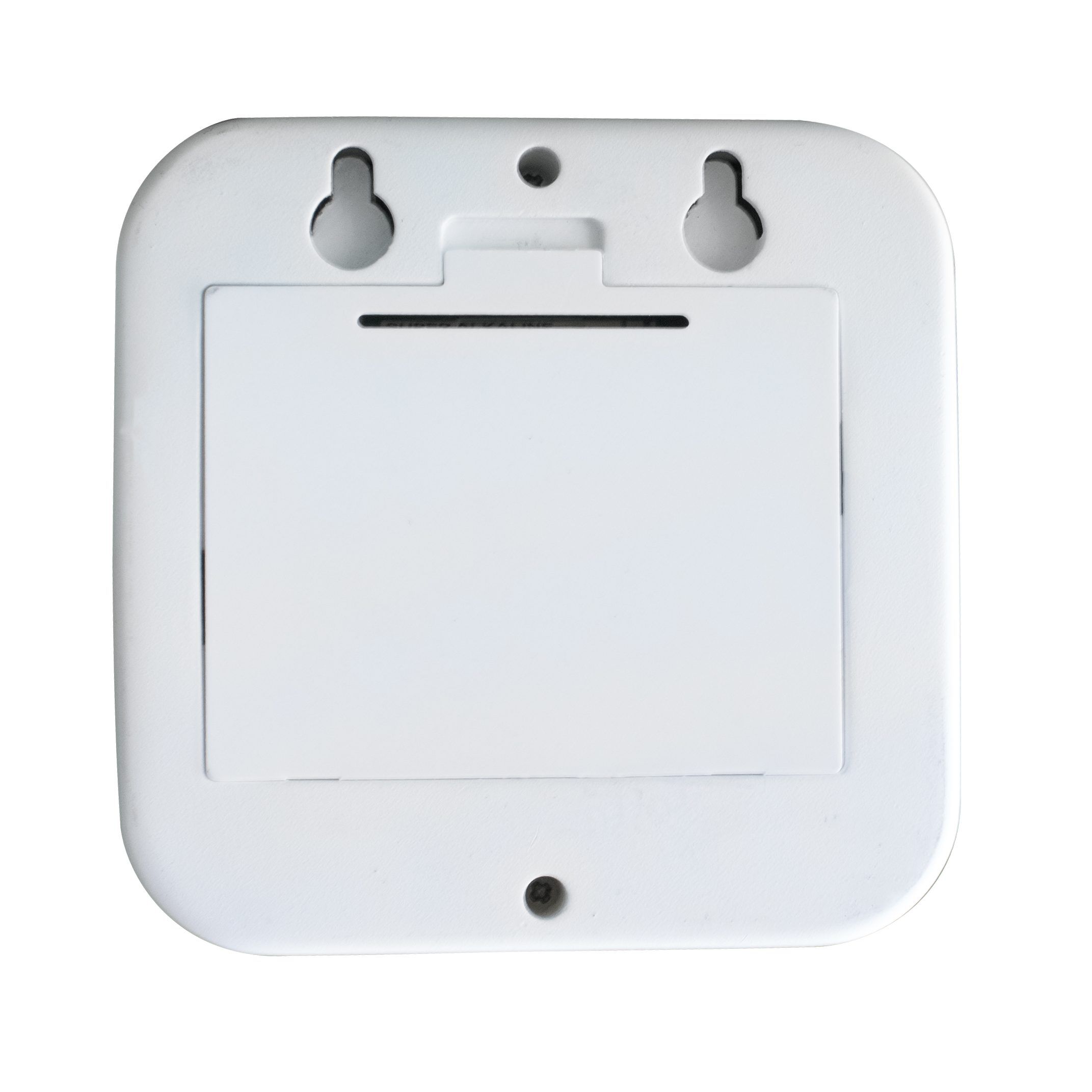

(1) Wireless Temperature Sensor

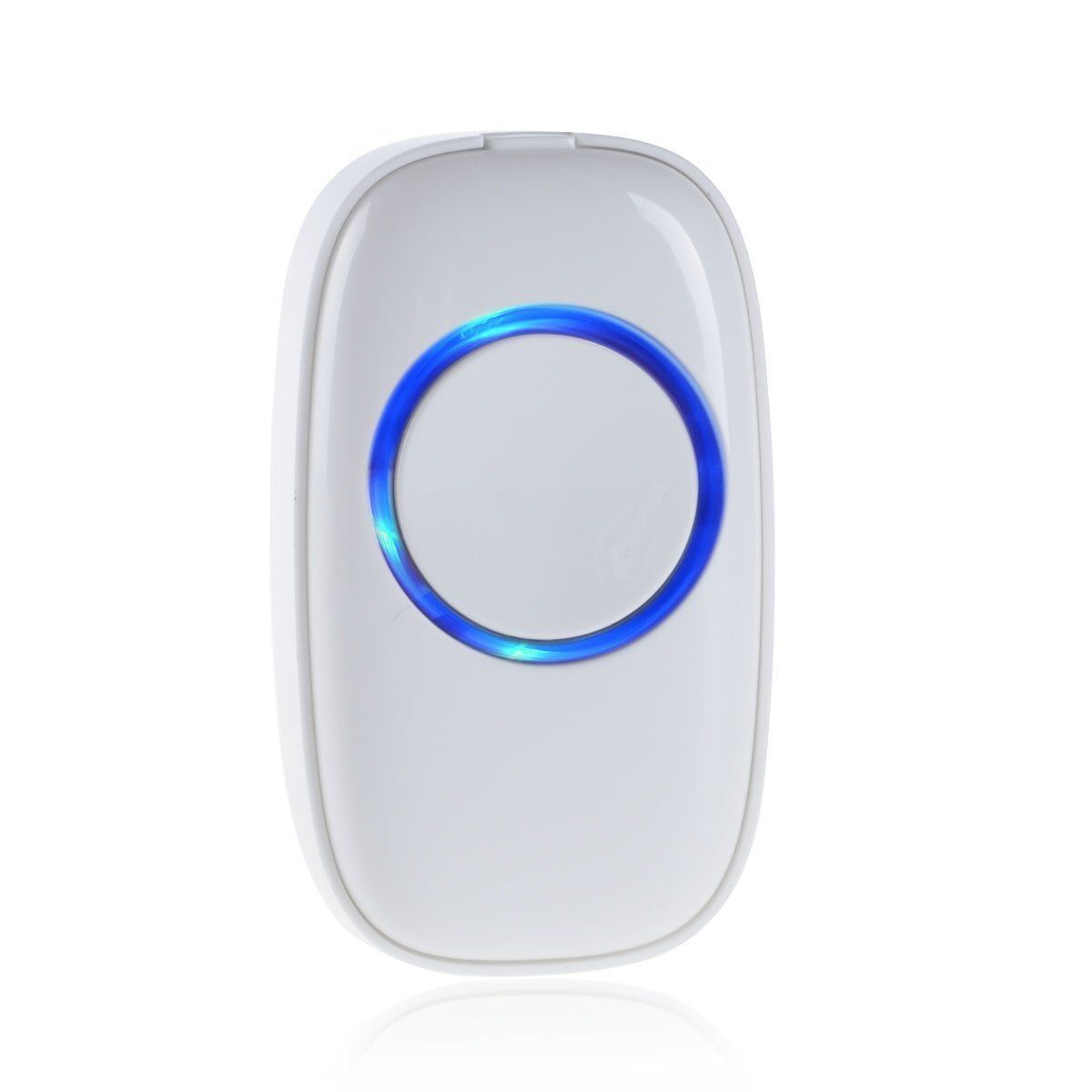

(2) Wireless Push Button Activators

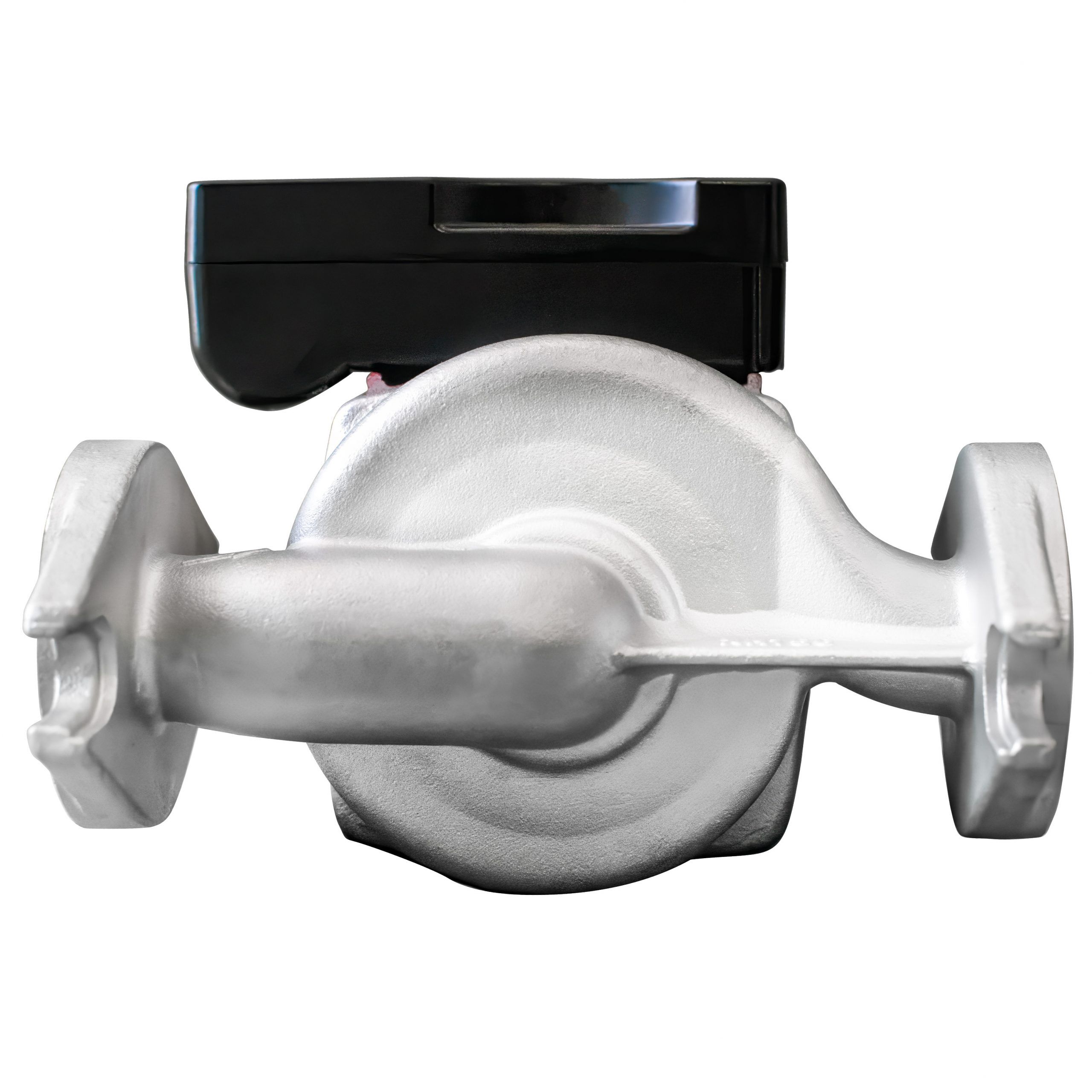

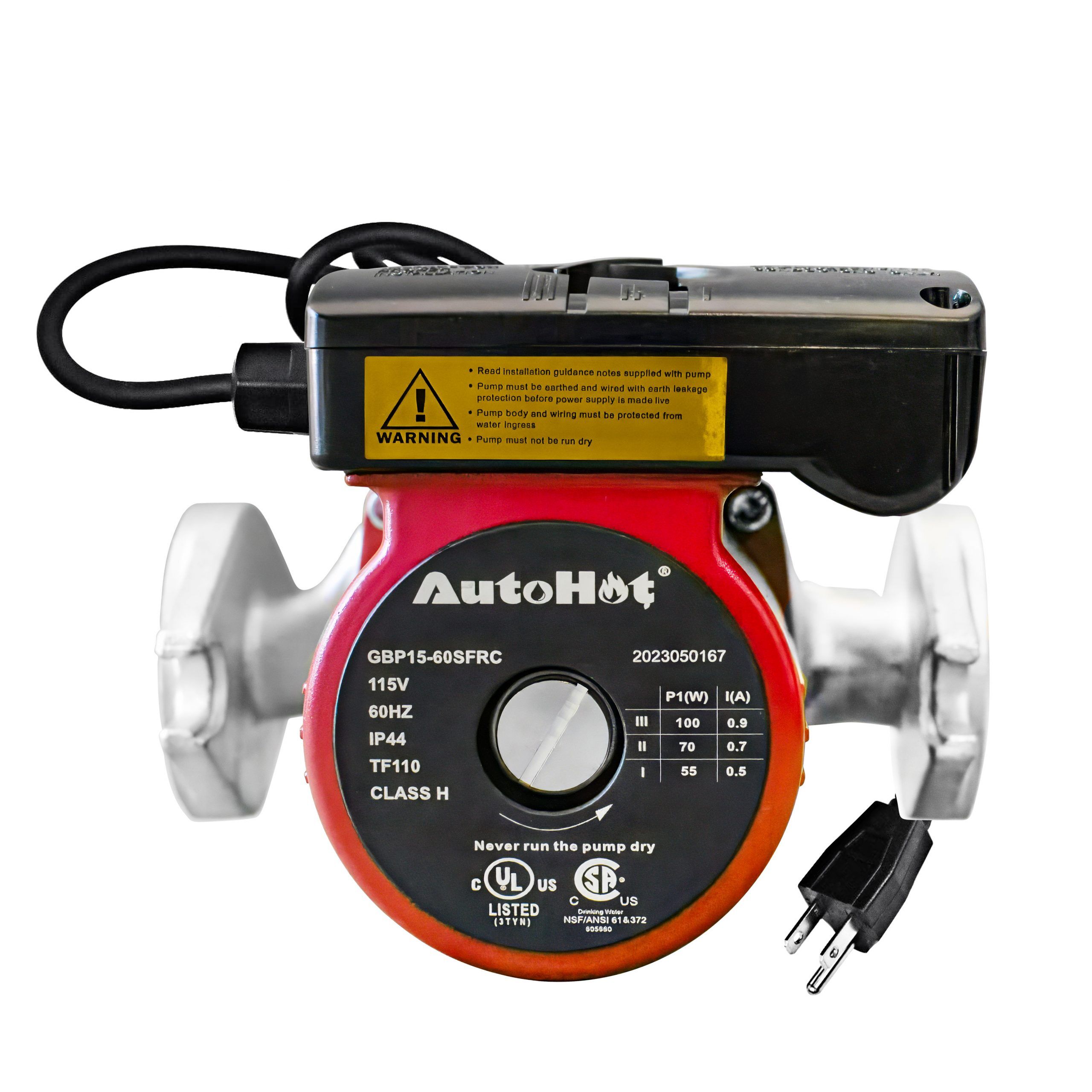

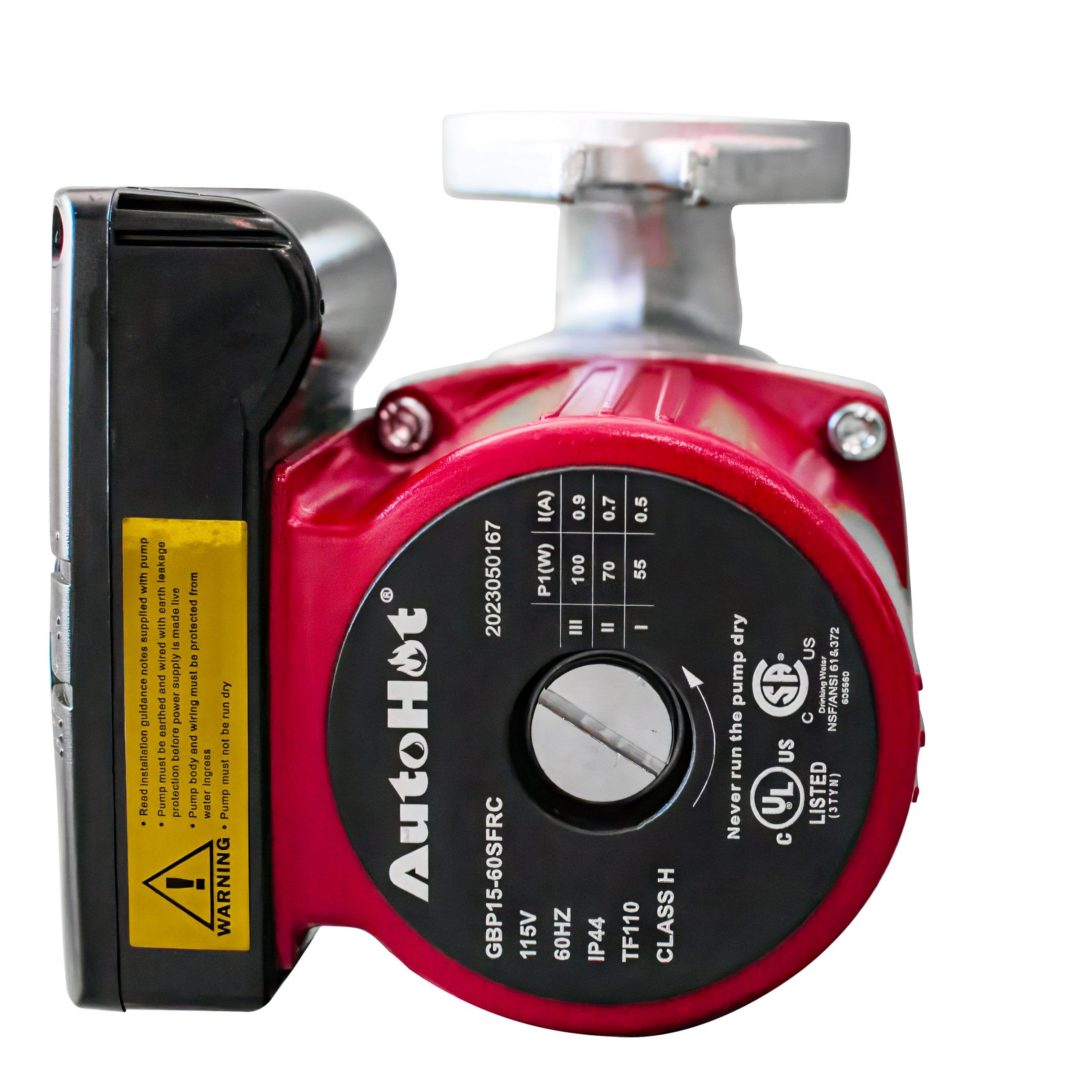

(1) 3-Speed, 55-Series Recirculation Pump
(1) Check Valve
